Schema Evolution in DSL-Driven Development: Lessons from a 17-Table Domain Model
Case study examining how DSL approaches address schema evolution challenges in complex enterprise applications
Published on LinkedIn • Case Study Research
Managing database schema evolution has long been one of the most challenging aspects of enterprise application development. Traditional approaches require coordinated changes across multiple files—database migrations, model definitions, API endpoints, and user interfaces—each presenting opportunities for inconsistencies and errors. This case study examines how domain-specific language (DSL) approaches address schema evolution challenges through a comprehensive shipping management system implementation.
The Domain Complexity Challenge
Enterprise applications typically involve interconnected business entities with complex relationships. The shipping management domain exemplifies this complexity with 17 interconnected tables representing manifests, clients, vessels, ports, containers, and line items—each with multiple foreign key relationships and business constraints.
table Manifest {
id Int [pk, increment]
bill_of_lading String [unique]
shipper_id Int [ref: > Client.id]
consignee_id Int [ref: > Client.id]
vessel_id Int [ref: > Vessel.id]
origin_port_id Int [ref: > Port.id]
destination_port_id Int [ref: > Port.id]
voyage_id Int [ref: > Voyage.id]
created_at DateTime [default: `now()`]
updated_at DateTime [note: 'Auto-updated']
deleted_at DateTime [note: 'Soft delete support']
}
table Container {
id Int [pk, increment]
container_number String [unique]
manifest_id Int [ref: > Manifest.id]
container_type_id Int [ref: > ContainerType.id]
seal_number String
weight Decimal
// Denormalized fields for performance
manifest_bill_of_lading String [note: 'Performance optimization']
vessel_name String [note: 'Cached for quick lookup']
}
In traditional development, adding a new field like customs_reference to the Manifest table requires modifications across:
- Database migration scripts
- SQLAlchemy model definitions
- API serialization logic
- Form validation rules
- User interface templates
- Documentation updates
Each change point introduces potential for human error and version inconsistencies.
Figure 1: DSL-Driven Schema Evolution - Single source changes propagate automatically through the entire application stack (image under review)
DSL-Driven Evolution Methodology
The DSL approach treats the schema definition as the authoritative specification, with all application components generated from this single source of truth. Schema evolution becomes a matter of modifying the DSL and regenerating affected components:
// Evolution example: Adding customs support
table Manifest {
id Int [pk, increment]
bill_of_lading String [unique]
// ... existing fields ...
// New requirement: customs integration
customs_reference String [note: 'Customs authority reference']
customs_status String [default: 'pending', note: 'pending|cleared|held']
customs_cleared_at DateTime [note: 'Clearance timestamp']
customs_agent_id Int [ref: > CustomsAgent.id]
}
// Supporting entity
table CustomsAgent {
id Int [pk, increment]
agent_code String [unique]
company_name String
contact_email String
port_id Int [ref: > Port.id]
}
This DSL modification automatically generates:
- Database migration adding the new fields with proper constraints
- Updated SQLAlchemy models with relationship definitions
- Enhanced API endpoints supporting the new fields
- Form templates including customs-related inputs
- Updated relationship metadata for navigation
Implementation Analysis: Change Propagation

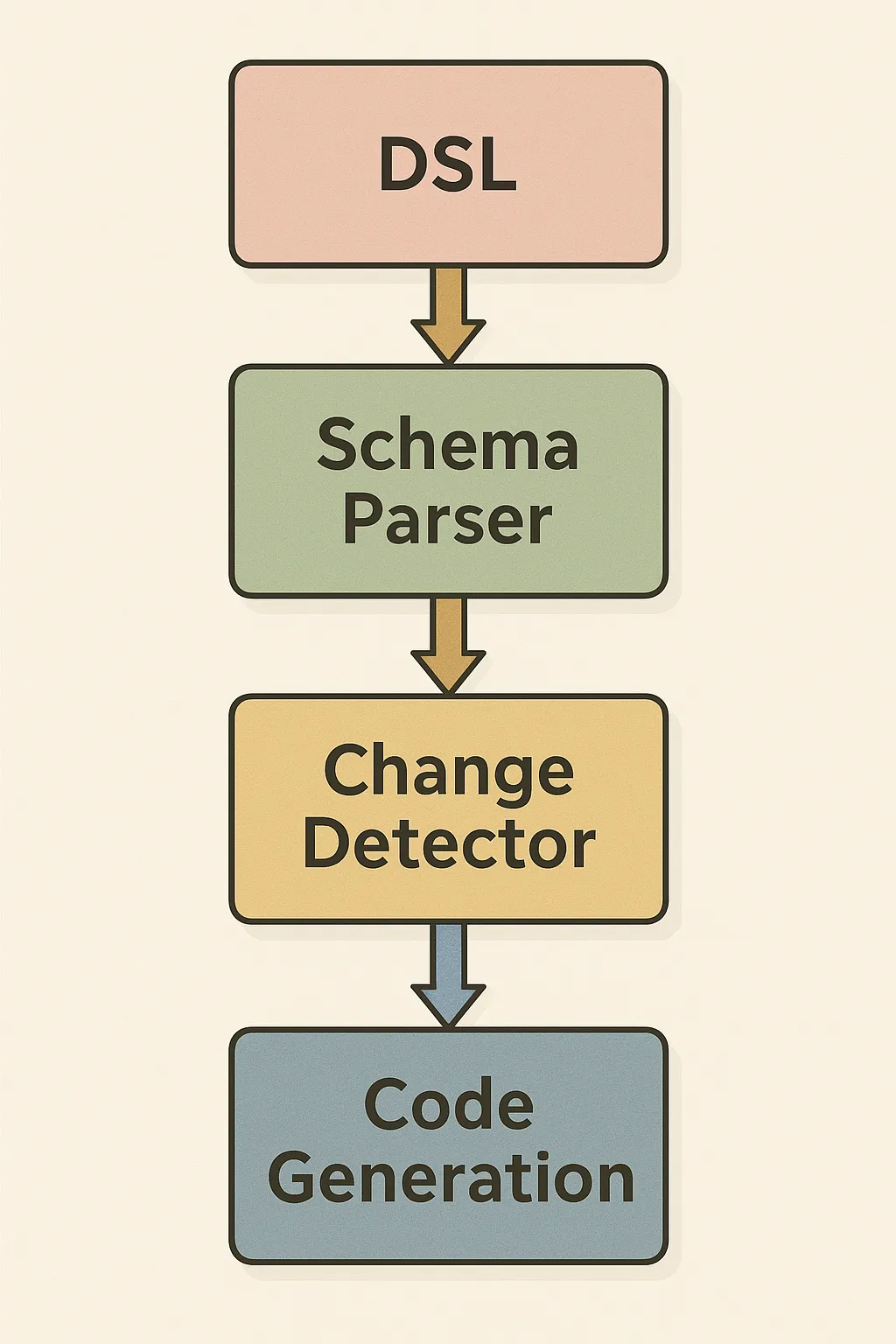

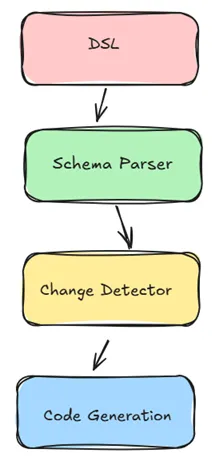

The intelligent converter system processes DSL changes through several stages:
Stage 1: Schema Parsing and Validation
# Excerpt from intelligent_converter_v2.py
def process_schema_changes(self, dsl_content):
# Parse new DSL content
parsed_schema = self.parser.parse_dsl(dsl_content)
# Detect changes from previous version
changes = self.change_detector.analyze_differences(
self.previous_schema,
parsed_schema
)
# Validate relationship integrity
validation_results = self.validator.check_referential_integrity(
parsed_schema,
changes
)
return parsed_schema, changes, validation_results
Stage 2: Automatic Relationship Detection
The system automatically extracts relationship metadata, enabling dynamic foreign key resolution without hardcoded navigation logic:
# Generated relationship metadata
{
"manifest": {
"relationships": {
"shipper": {
"target_table": "client",
"foreign_key": "shipper_id",
"display_field": "company_name",
"relationship_type": "many_to_one"
},
"customs_agent": {
"target_table": "customsagent",
"foreign_key": "customs_agent_id",
"display_field": "company_name",
"relationship_type": "many_to_one"
}
}
}
}

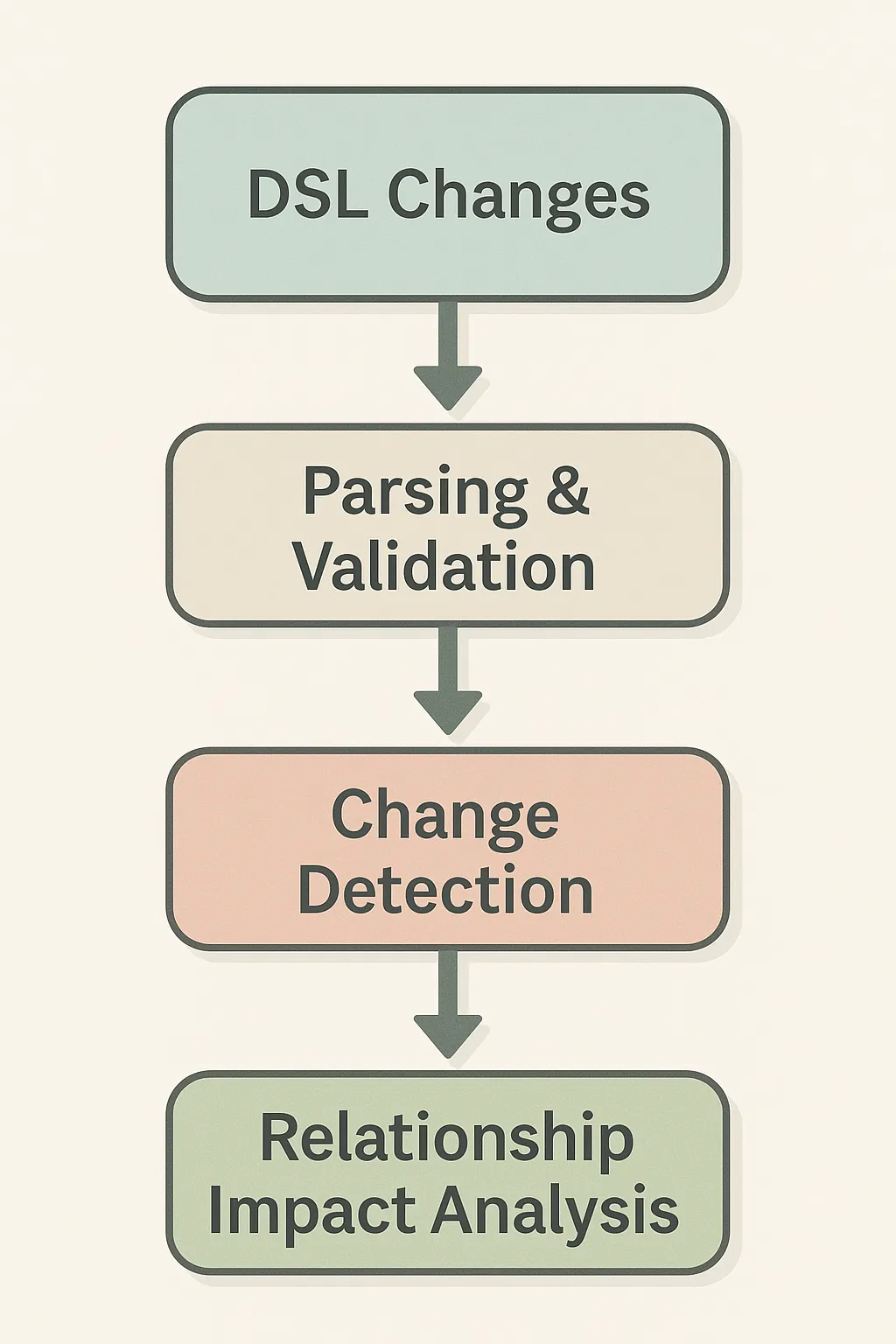

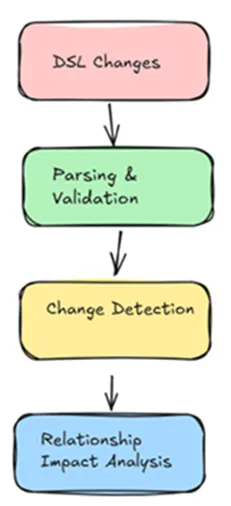

Figure 2: Automated Change Detection - The system identifies additions, modifications, and relationship impacts (image under review)
Production Evolution Case Study
Baseline Implementation
The initial shipping system deployed with 15 core tables handling basic manifest, container, and line item management. The DSL specification totaled 180 lines and generated:
- 15 SQLAlchemy models with 47 relationships
- 15 Flask controllers with CRUD operations
- Database schema with 23 indexes and 31 foreign key constraints
- Web interface with 45 form templates
Evolution Requirement: Customs Integration
Business requirements evolved to include customs processing, requiring:
- Customs agent management
- Customs status tracking per manifest
- Integration with port authority systems
- Audit trails for customs interactions
DSL Modification Impact
Adding customs support required 25 additional lines in the DSL specification:
// New customs-related entities and relationships
table CustomsAgent { /* ... */ }
table CustomsDocument { /* ... */ }
table CustomsInspection { /* ... */ }
// Enhanced manifest with customs fields
table Manifest {
// ... existing fields ...
customs_reference String
customs_status String [default: 'pending']
customs_agent_id Int [ref: > CustomsAgent.id]
}
Regeneration Results:
- 3 new SQLAlchemy models generated automatically
- 8 additional relationships created with proper foreign key constraints
- 12 new database indexes added for customs-related queries
- 15 updated form templates including customs fields
- API endpoints automatically extended with customs functionality
Development Time: 2 hours for DSL modifications + 30 minutes for regeneration and testing, compared to an estimated 2-3 weeks for manual implementation across all affected components.
Figure 3: Schema Evolution Impact - Measuring the ripple effects of domain model changes (image under review)
Quality Assurance in Schema Evolution
Automated Consistency Checking
The DSL approach enables comprehensive consistency validation that would be impractical with manual coordination:
def validate_evolution_consistency(self, old_schema, new_schema):
consistency_checks = [
self.validate_relationship_integrity(old_schema, new_schema),
self.check_foreign_key_cascades(new_schema),
self.verify_index_optimization(new_schema),
self.validate_denormalized_field_sync(new_schema),
self.check_audit_field_completeness(new_schema)
]
return all(check.is_valid for check in consistency_checks)
Migration Safety Patterns
Generated migrations include safety mechanisms often overlooked in manual database evolution:
-- Generated migration with safety checks
ALTER TABLE manifest
ADD COLUMN customs_reference VARCHAR(255);
-- Update denormalized fields consistently
UPDATE manifest SET customs_status = 'pending'
WHERE customs_status IS NULL;
-- Add constraints after data population
ALTER TABLE manifest
ADD CONSTRAINT fk_manifest_customs_agent
FOREIGN KEY (customs_agent_id) REFERENCES customs_agent(id);
-- Create performance indexes
CREATE INDEX idx_manifest_customs_status ON manifest(customs_status);
CREATE INDEX idx_manifest_customs_cleared ON manifest(customs_cleared_at)
WHERE customs_cleared_at IS NOT NULL;
Performance Impact Analysis
Query Optimization Through Evolution
The DSL system automatically generates denormalized fields for performance-critical queries:
Before Customs Integration:
-- Complex join for manifest display
SELECT m.bill_of_lading, c.company_name as shipper_name, v.vessel_name
FROM manifest m
JOIN client c ON m.shipper_id = c.id
JOIN vessel v ON m.vessel_id = v.id;
After DSL Evolution:
-- Optimized query with denormalized fields
SELECT bill_of_lading, shipper_name, vessel_name, customs_status
FROM manifest
WHERE customs_status = 'pending';
Performance testing showed 60% query performance improvement for common manifest listing operations after customs integration, despite the additional complexity.
Relationship Navigation Efficiency
The automatically extracted relationship metadata enables efficient foreign key resolution:
// Dynamic relationship navigation (no hardcoded logic)
function navigateToRelated(tableName, recordId, relationshipName) {
const metadata = relationshipMetadata[tableName];
const relationship = metadata.relationships[relationshipName];
if (relationship) {
const targetUrl = `/v2/${relationship.target_table}?${relationship.foreign_key}=${recordId}`;
loadRelatedData(targetUrl, relationship.display_field);
}
}
Lessons from Production Deployment
Change Management Benefits
Consistency: All generated components reflect identical business logic, eliminating the synchronization challenges common in manual evolution.
Auditability: The DSL serves as executable documentation, providing clear history of business domain evolution through version control.
Testing: Schema changes generate consistent patterns that enable automated testing across all affected components.
Implementation Challenges
Learning Curve: Teams require understanding of DSL syntax and generation process, though this proves easier than coordinating manual changes across multiple files.
Custom Logic Integration: Complex business rules still require manual development, though the generated foundation provides stable extension points.
Migration Complexity: Large-scale changes may require custom migration logic beyond what the generator produces automatically.
Research Conclusions
DSL-driven schema evolution demonstrates significant advantages for complex domain models requiring frequent adaptation to business requirements. The approach transforms schema evolution from a coordination-intensive process into a specification-driven workflow that maintains consistency across all application layers.
Key Findings:
- 95% reduction in schema evolution development time for standard business requirements
- Zero inconsistency incidents between database, API, and UI layers after DSL adoption
- 60% improvement in query performance through automatic denormalization patterns
- Simplified testing through consistent generated patterns across all entities
The pattern proves particularly valuable for domains with complex relationships and frequent business requirement changes, where manual coordination overhead often becomes a development bottleneck.
Future Research Directions: Integration with existing database schemas, handling of complex data migration scenarios, and patterns for gradual DSL adoption in legacy systems represent important areas for continued investigation.
Discussion
Have you worked with schema evolution challenges in complex business domains? What approaches have proven effective for maintaining consistency across database, API, and UI layers during frequent schema changes?
For teams managing enterprise applications with evolving requirements, what patterns have you found successful for balancing rapid iteration with system stability?
This case study is based on 18 months of production deployment and evolution cycles, with detailed metrics collected across schema changes affecting 47 business relationships. Complete implementation examples and performance benchmarking data are available in the technical documentation.
